Go, the programming language written and maintained by
Google, shines with it's toolchain. However, some of
the tools behave differently than expected and it may cost you several hours of
debugging and experimenting to find the arguments and execution orders.
This article introduces you to the problem of reporting accurate code
coverage using the Go programming language, and offers a solution that runs on
any Operating System. If you have not worked with Code Coverage in Golang,
consider reading the excellent Go cover story
first.
If you are looking for the solution only, run this:
# Download and install go-acc
$ go get -u github.com/ory/go-acc
# Run it against some package(s)
$ go-acc github.com/some/package
$ go-acc .
$ go-acc ./...
$ go-acc $(glide novendor)
Missing Cross-Package Coverage
While writing integration tests for one of our
open source Go projects, I noticed that code coverage
did not increase despite writing a lot of them.
The reason for this was that go test -cover is per default only recording code
coverage for the package that is currently tested, not for all the packages from
the project. If you have a lot of integration tests, your code coverage might
be higher than you think!
Code Example
First I want to take a look at some code. This repository is available on
GitHub . The repository
consist of two packages pkg and otherpkg. The first package defines two
functions, SayCode and SayCoverage and a test for SayCode. The second
package defines a function SayCodeCoverage that uses SayCode and
SayCoverage, and a test for SayCodeCoverage:
package pkg
func SayCode() string {
return "code"
}
func SayCoverage() string {
return "coverage"
}
package pkg
import "testing"
func TestSayCode(t *testing.T) {
if SayCode() != "code" {
t.Fail()
}
}
package otherpkg
import "github.com/arekkas/accurate-test-coverage/pkg"
func SayCodeCoverage() string {
return pkg.SayCode() + " " + pkg.SayCoverage()
}
package otherpkg
import "testing"
func TestSayCodeCoverage(t *testing.T) {
if SayCodeCoverage() != "code coverage" {
t.Fail()
}
}
The Golang go test -coverpkg Flag
Let's use -covermod=atomic to get a report of how well the tests cover the
code. We expect 100% code coverage because every line is being touched by the
tests:
$ go get -d -u github.com/arekkas/accurate-test-coverage
$ go test -covermode=atomic \
github.com/arekkas/accurate-test-coverage/...
ok github.com/arekkas/accurate-test-coverage/otherpkg 10.115s coverage: 100.0% of statements
ok github.com/arekkas/accurate-test-coverage/pkg 0.485s coverage: 50.0% of statements
That didn't go as expected! Code coverage reports only 75% (100% + 50%) code
coverage. That happens because go test -covermode is not collecting coverage
reports on code that doesn't belong to the package currently being tested. Of
course, Go has a flag for that, it's called -coverpkg. This flag accepts a
list of packages to consider while computing code coverage:
$ go test -covermode=atomic \
-coverpkg $(go list github.com/arekkas/accurate-test-coverage/...) \
github.com/arekkas/accurate-test-coverage/...
ok github.com/arekkas/accurate-test-coverage/pkg 22.494s coverage: 0.0% of statements in github.com/arekkas/accurate-test-coverage/otherpkg
ok github.com/arekkas/accurate-test-coverage/otherpkg 10.398s coverage: 100.0% of statements in github.com/arekkas/accurate-test-coverage/otherpkg
Awesome, we received true code coverage!
The following section is outdated and -coverpkg and -coverprofile are now
compatible with each other! Thanks Maria!
Golang flag -coverprofile is incompatible with -coverpgk

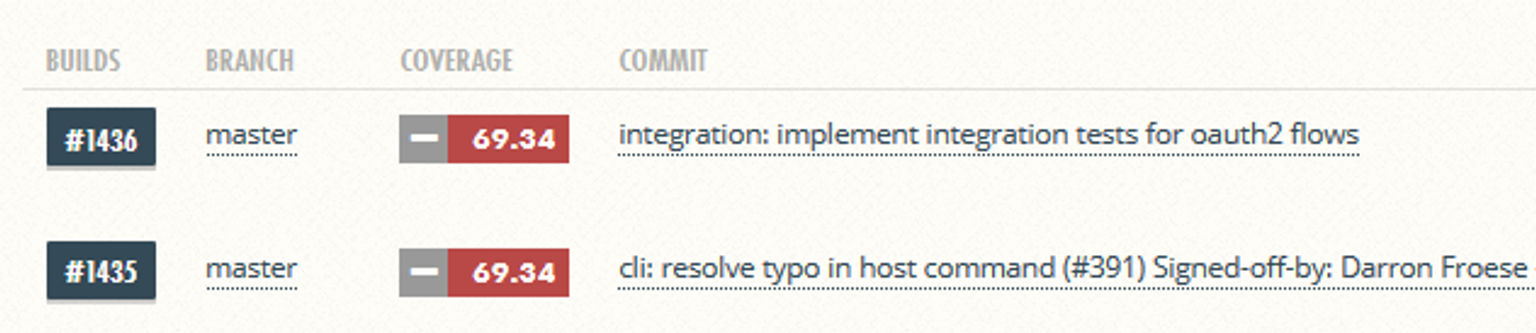

How about getting some nice code coverage reporting using, for example,
coveralls.io ? Since go test supports writing the
coverage report to a file using -coverprofile, this should be an easy one:
$ go test -covermode=atomic \
-coverprofile=coverage.tmp \
-coverpkg $(go list github.com/arekkas/accurate-test-coverage/...) \
github.com/arekkas/accurate-test-coverage/...
cannot use test profile flag with multiple packages
Using the flag -coverprofile, go test is unable to merge code coverage from
multiple packages into one report. Thus, what needs to be done is loop through
all the packages, and merge the outputs into one. Doing this either requires
some bash magic (which does not work on windows), or go-acc:
# Download and install go-acc
$ go get -u github.com/ory/go-acc
# Run it against some package(s)
$ go-acc github.com/some/package
$ go-acc .
$ go-acc ./...
# You can use your regular toolchain as well:
$ go-acc $(go list ./...)
$ go-acc $(glide novendor)
Now, let's run this against the package from above:
$ go get -d -u github.com/arekkas/accurate-test-coverage/...
$ go-acc github.com/arekkas/accurate-test-coverage/...
ok github.com/arekkas/accurate-test-coverage/otherpkg 0.082s coverage: 100.0% of statements in github.com/arekkas/accurate-test-coverage/otherpkg, github.com/arekkas/accurate-test-coverage/pkg
ok github.com/arekkas/accurate-test-coverage/pkg 0.081s coverage: 33.3% of statements in github.com/arekkas/accurate-test-coverage/otherpkg, github.com/arekkas/accurate-test-coverage/pkg

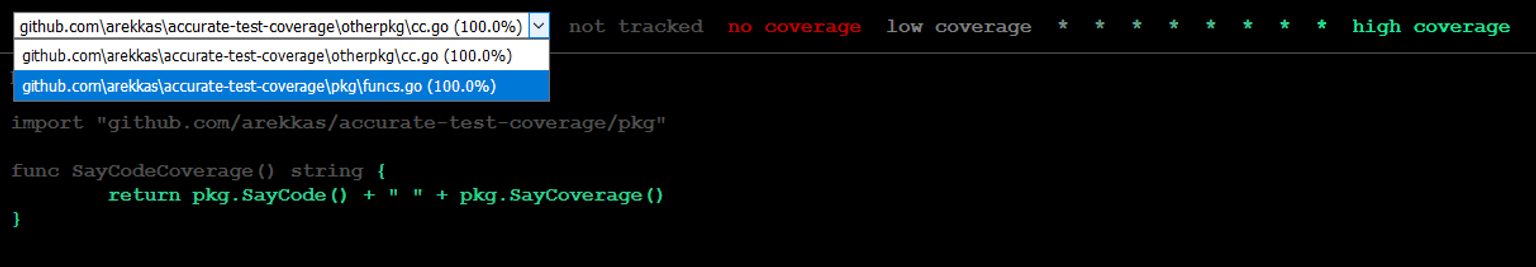

Running go tool cover -html=coverage.txt should open a browser and show that
all code has been touched by the tests:
That's it - thank you for reading!
